IEC 62196-1 AC/DC Anti-Shock Probe Test Device for EV Connector Electrical Safety Testing

Brand Name : Sinuo

Model Number : SN2210-19A

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T

Supply Ability : 30 Sets Per Month

Delivery Time : 5 Days

Packaging Details : Carton

Applicable Standard : IEC 62196-1:2022

Applied Clauses : 10.1, 10.2, 26.6

Output Test Voltage : AC 0-62V / DC 0-62V

Power Supply : AC 220V ±5%, 50/60Hz

Operating Temperature : 0℃ – 40℃

Relative Humidity : ≤80% RH

Contact Now

IEC 62196-1 AC/DC Anti-Shock Probe Test Device for EV Connector Electrical Safety Testing
Professional electrical safety testing equipment designed to verify protection against electric shock in electrical appliances, EV connectors, and charging equipment. The system works with standardized test probes to determine whether hazardous live parts can be contacted during accessibility tests.
Product Information
This equipment complies with IEC 62196-1:2022 requirements including clauses 10.1, 10.2 and 26.6, which specify safety verification for electric vehicle connectors and related electrical products. Widely used in EV charging equipment testing laboratories, electrical product manufacturers, certification organizations, and quality inspection institutes to verify the safety design of electrical enclosures and insulation systems.
Working Principle
During testing, one electrode connects to the energized part of the equipment under test, while the other electrode connects to the standardized testing probe. After activation, the probe touches potentially accessible parts. A voltage indication confirms contact with live components, indicating potential electric shock risk. The circuit can be reset after testing for safe operation. This method enables engineers to quickly determine if electrical products provide sufficient protection against accidental contact with hazardous parts.
Technical Specifications
Parameter Specification
Applicable Standard IEC 62196-1:2022
Applied Clauses 10.1, 10.2, 26.6
Power Supply AC 220V ±5%, 50/60Hz
Output Test Voltage AC 0-62V / DC 0-62V
Operating Temperature 0℃ - 40℃
Relative Humidity ≤80% RH
Environment No vibration, no corrosive gas
Key Features
  • Designed according to IEC 62196-1 electrical safety testing requirements
  • Supports AC and DC voltage output switching for flexible testing scenarios
  • Compatible with a variety of IEC standard test probes
  • Simple push-button operation for efficient laboratory testing
  • Reliable electrical safety verification for EV connectors and appliances
  • Compact structure suitable for laboratory or production quality inspection
Product Images

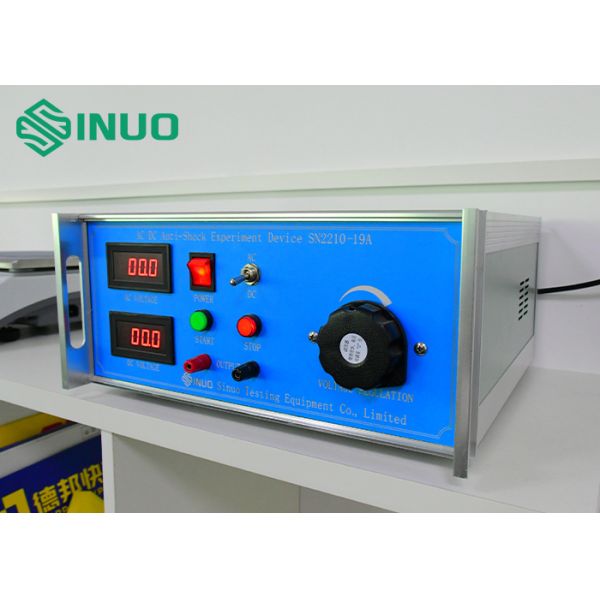

IEC 62196-1 AC/DC Anti-Shock Probe Test Device for EV Connector Electrical Safety Testing IEC 62196-1 AC/DC Anti-Shock Probe Test Device for EV Connector Electrical Safety Testing IEC 62196-1 AC/DC Anti-Shock Probe Test Device for EV Connector Electrical Safety Testing
